COMPRESSOR
Convinient High Integrated All in One Machine, combined with Air Compressor, Air Dryer, Air Tank, and The Filters
With its compact footprint, low noise operation and integration of air end condensate treatment equipment, the EAC Series offers complete versatility for your production. The EAC Series’ integrated design can help the user to save space and the assembly cost, resulting a High Efciency and Energy Saving, reduce the leakage and the pressure drop. Don’t need the pipe to assembly, just buy the machine and you can use it.
The EAC series comprises a comprehensive range of premium quality rotary screw air compressors from 4 kW to 22 kW. Each model is constructed to the highest standard using the best quality components in order to ensure a long life and total reliability.
The design of the EAC series is ideal for installation when space is restricted or in situations when the compressor needs to be installed near the production activity
DESCRIPTION
FEATURES
Energy Saving Electric Motor
T.E.F.C Highly efficient, totally enclosed fan-cooled (T.E.F.C.), IP55, class F electric motor can achieve high efficiency of 95.2% that brings an unprecedented level of energy saving. High quality high speed bearings from “SKF”are fitted for continuous trouble-free operation.
Electronic Controller
Controller with multi-function and multi-language backlight LCD graphic display, the menu is drop down type. In the main screen are displayed :
Reliable Automatic Control Box
Electronic components of the IP55 automatic control box such as relays, contactors are from named brand – Siemens to provide safe and reliable compressor control solution. Advanced microprocessor based PLC controller is used to adjust compressor loading according to system air demand automatically. Versatile fault diagnosis and protection functions to assure stable and reliable operation of the compressor.
Extraordinary Filter System Design
T.E.F.C Highly efficient, totally enclosed fan-cooled (T.E.F.C.), IP55, class F electric motor can achieve high efficiency of 95.2% that brings an unprecedented level of energy saving. High quality high speed bearings from “SKF”are fitted for continuous trouble-free operation.
Multi-stage air/oil separation system
The latest European patented multi-stage air/oil separation system to guarantee low residual oil content of less than 1-3 ppm. This exceeds any international standard of oil injected rotary screw air compressor and is particularly suitable for customers with clean air for applications.
High Efficiency Air Cooler System
Big capacity models adopt double cooling fan design. The first cooling fan starts up with the compressor and the second one starts up only when the operating temperature exceeds 80℃ and it stops when goes back below 70℃ in order to save energy.

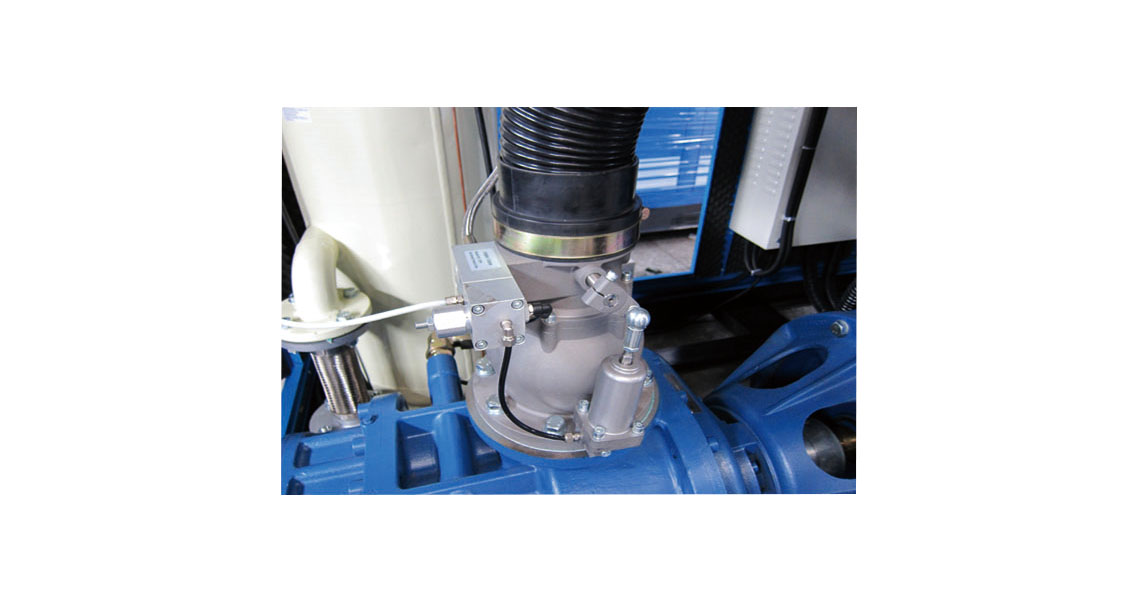

Modern Concept Suction Control System
Modern concept suction control valve with automatic closure to prevent any oil escape. The control unit can automatically adjust from 60-100% according to the system air demand to effectively minimize operating cost.
State-of-the-art Compressor Airend
Optimal Energy efficiency and outstanding reliability is achieved from patented design third generation non-symmetric robust rotors, superior bearings and oil seal that help the compressor airend to operate with good dynamic balance, low vibration, low rotation speed and low noise level.
Maintenance Free Transmission System
Low to medium capacity model with its motor baseplate fitted with auto-tensioning system that automatically adjusts the tension of the transmission belts; big capacity model with its motor connected directly with airend through flexible coupling. This ensures high power transmission efficiency and maintenance-free operation.
High Efficiency Intake Filter System
Intake air pre-filter and big surface air filter element can efficiently remove dust particles from intake cooling air and at the same time to maintain low noise level. Ventilating air is ducted in via special channel, cooler ambient air to be compressed will result high air delivery due to increased volumetric efficiency.
