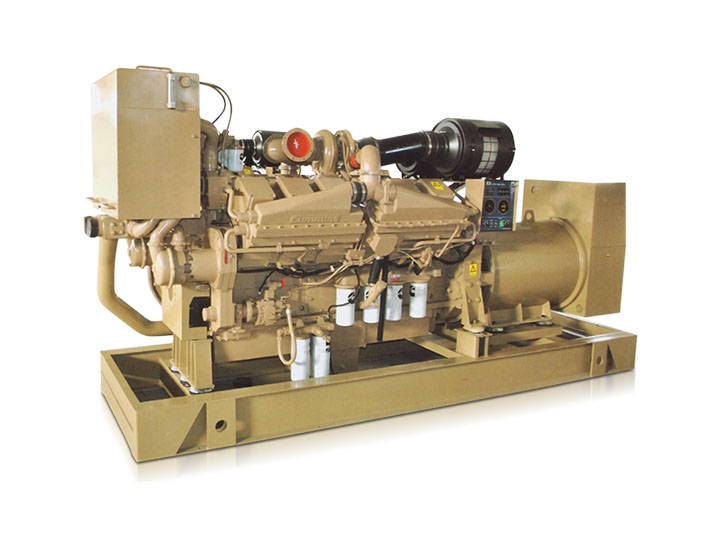

MARINE GENSET

CUMMINS

Every major component of our marine generator sets, including the engine, alternator and control system, is either designed and manufactured or integrated by divisions of the Cummins family. CUMMINS marine diesel generator components are Dongfeng CUMMINS (DCEC) and Chongqing CUMMINS (CCEC). This means all elements of the generator set are engineered to operate with complete system harmony for optimal performance and maximum efficiency. And the best part is knowing your generator is backed by support and service from the world’s largest distributor/dealer network in the industry and a comprehensive global warranty.

Cummins marine generator sets power a wide range of applications, such as Cargo ships, Coastguard & patrol boats, Dredging, Ferrys, Fishing, Offshore, Tugs, Vessels, Yachts


CUMMINS MARINE GENSET DESCRIPTION

  • All types of parts have strong versatility, high degree of serialization, easy for maintenance.
  • Advanced design and sophisticated manufacturing, adapt to a variety of severe working conditions, high strength, strong heavy load operation capacity.
  • Excellent reliability. Selecting forged steel camshaft and crankshaft, high-strength cylinder block design, many parts are cast on the cylinder block, with high rigidity, high pressure resistance and longer service life.
interior
Marine Genset

Cummins

interior
Marine Genset

Cummins


CUMMINS Marine Diesel Generating Sets - 50Hz 1500rpm
Genset Model Rated Power Voltage Engine Model Alternator Protection Class Weight (kg) Dimension LxWxH (mm)
kW kVA
CCFJ30J 30 38 400 4BTA3.9-GM47 UCM224C IP23 1110 1560x750x1190
CCFJ40J 40 50 400 6BT5.9-GM83 UCM224E IP23 1150 1560x750x1190
CCFJ50J 50 63 400 6BT5.9-GM83 UCM224F IP23 1190 1560x750x1190
CCFJ64J 64 80 400 6BT5.9-GM83 UCM274C IP23 1270 1560x750x1190
CCFJ75J 75 94 400 6CT8.3-GM115 UCM274D IP23 2150 2060x800x1290
CCFJ100J 100 125 400 6CT8.3-GM115 UCM274E IP23 2200 2190x800x1290
CCFJ120J 120 150 400 6CTA8.3-GM155 UCM274G IP23 2200 2210x800x1290
CCFJ150J 150 188 400 NTA855-DM HCM434C IP23 3600 2910x956x1700
CCFJ200J 200 250 400 NTA855-DM HCM434D IP23 3680 2910x956x1700
CCFJ250J 250 313 400 NTA855-DM HCM434E IP23 3800 2910x956x1700
CCFJ280J 280 350 400 NTA855-DM HCM434F IP23 4000 3190x920x1890
CCFJ300J 300 375 400 KTA19-DM HCM534C IP23 4000 3190x920x1890
CCFJ350J 350 438 400 KTA19-DM HCM534D IP23 4100 3190x920x1890
CCFJ400J 400 500 400 KTA19-DM HCM534E IP23 4250 3190x920x1890
CCFJ500J 500 625 400 KTA38-DM LVM634B IP23 6100 4100x1230x2330
CCFJ560J 560 700 400 KTA38-DM LVM634C IP23 6440 4100x1230x2330
CCFJ630J 630 788 400 KTA38-DM LVM634D IP23 6960 4100x1230x2330
CCFJ710J 710 888 400 KTA38-DM LVM634E IP23 6960 4100x1230x2330
CCFJ750J 750 938 400 KTA38-DM LVM634F IP23 7210 4100x1230x2330
CCFJ800J 800 1000 400 KTA38-DM LVM634F IP23 7210 4100x1230x2330
CCFJ1500J 1500 1875 400 QSK60-DM DSG86 M1-4AVK IP23 13100 4980x1760x2570


CUMMINS Marine Diesel Generating Sets - 60Hz 1800rpm
Genset Model Rated Power Engine Model Cyl Displacement (L) Alternator Weight (kg) Dimension LxWxH (mm)
kW kVA
CCFJ40JW 50 40 4BTA3.9-GM65 4 3.9 MP-H-40-4 800 1670x850x1270
CCFJ50JW 63 50 4BTA3.9-GM65 6 5.9 MP-H-50-4 1000 1905x895x1300
CCFJ64JW 80 64 6BTA5.9-GM100 6 5.9 MP-H-64-4 1100 1905x895x1300
CCFJ75JW 94 75 6BTA5.9-GM100 6 5.9 MP-H-75-4 1250 1920x895x1300
CCFJ90JW 113 90 6BTA5.9-GM100 6 8.3 MP-H-90-4 1300 1995x895x1300
CCFJ100JW 125 100 6BTA5.9-GM100 6 8.3 MP-H-100-4 1650 2110x810x1360
CCFJ120JW 150 120 6CTA8.3-GM175 6 8.3 MP-H-120-4 1700 2110x810x1360
CCFJ150JW 188 150 6CTA8.3-GM175 6 8.9 MP-H-150-4 1750 2685x995x1790
CCFJ250JW 313 250 NTA855-DM 6 14.0 MP-H-250-4 3180 2760x995x1790
CCFJ270JW 388 270 NTA855-DM 6 14.0 MP-H-300-4 3250 2850x995x1790
CCFJ350JW 438 350 KTA19-DM 6 19.0 MP-H-350-4 3800 3170x1000x1905
CCFJ400JW 500 400 KTA19-DM 6 19.0 MP-H-400-4 3950 3170x1000x1905
CCFJ450JW 563 450 KTA19-DM 6 19.0 MP-H-400-4 4000 3950x1500x2500
CCFJ600JW 625 600 KT38-DM 12 37.5 MP-H-600-4 6300 4100x1500x2500
CCFJ630JW 788 630 KTA38-DM 12 37.5 MP-H-630-4 6350 4100x1500x2500
CCFJ700JW 875 700 KTA38-DM 12 37.5 MP-H-700-4 6400 4100x1500x2500
CCFJ800JW 1000 800 KTA38-DM 12 37.5 MP-H-850-4 7100 4100x1500x2500
CCFJ900JW 1125 900 QSK38-DM 12 37.5 MP-H-1000-4 7500 4250x1500x2500
